Get three quotes for a 200-amp upgrade in the Fraser Valley and you can honestly receive $2,800, $6,500, and $14,000 — for what sounds like the same job. It is not the same job. “Panel upgrade” covers two very different scopes of work, and the gap between them explains almost every confusing quote. This guide separates the two, shows what each costs in BC in 2026, and explains the permit and utility steps nobody mentions until they are standing in your driveway.
1. Two Different Jobs Hiding Under One Name

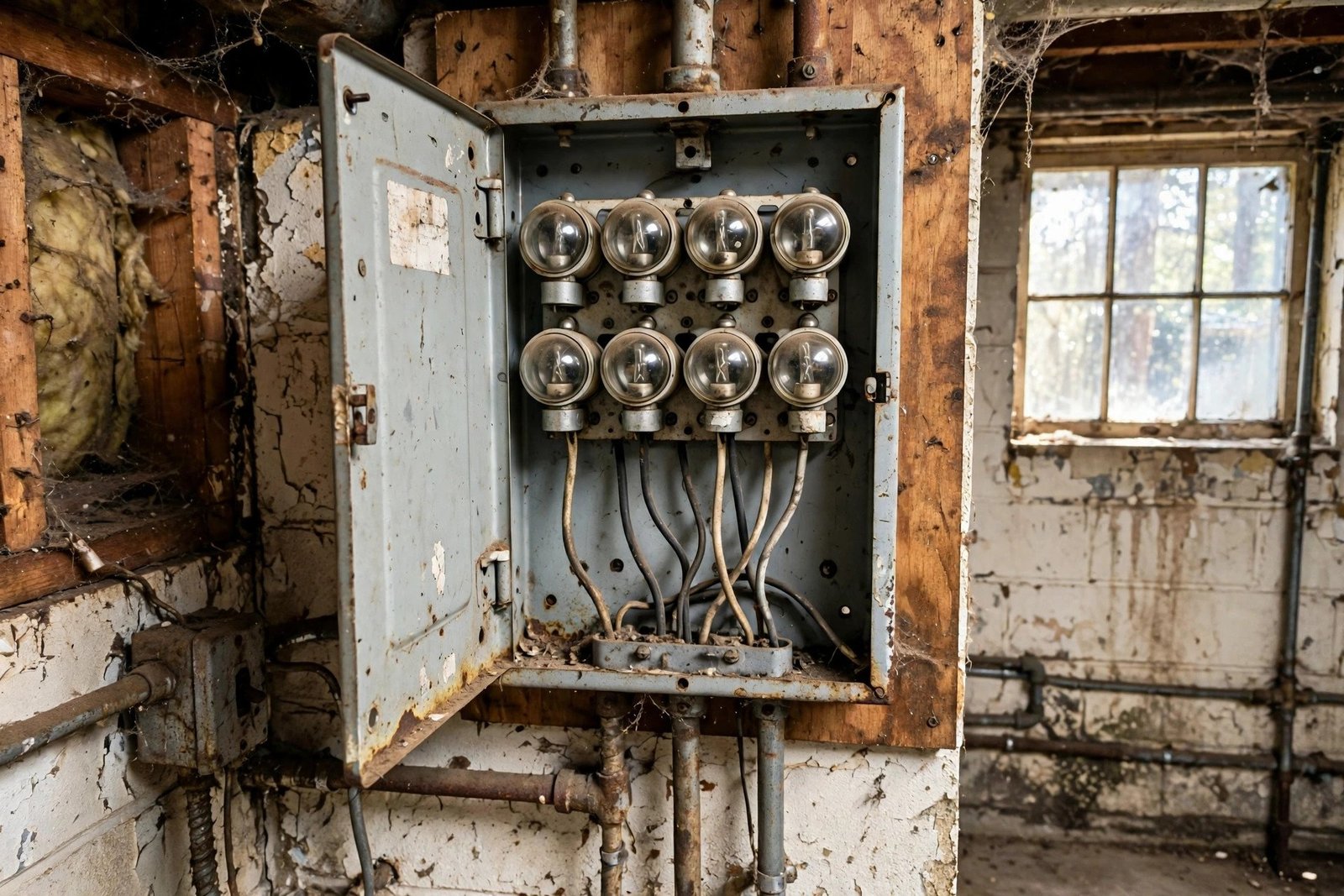

Panel swap (panel replacement only). Your service size stays the same — say 100 amps — but the old panel is replaced with a modern one: new breakers, more circuit spaces, code-compliant protection. This is the right job when the panel itself is the problem: a failed or recalled brand, a full fuse box, or no room left for new circuits.

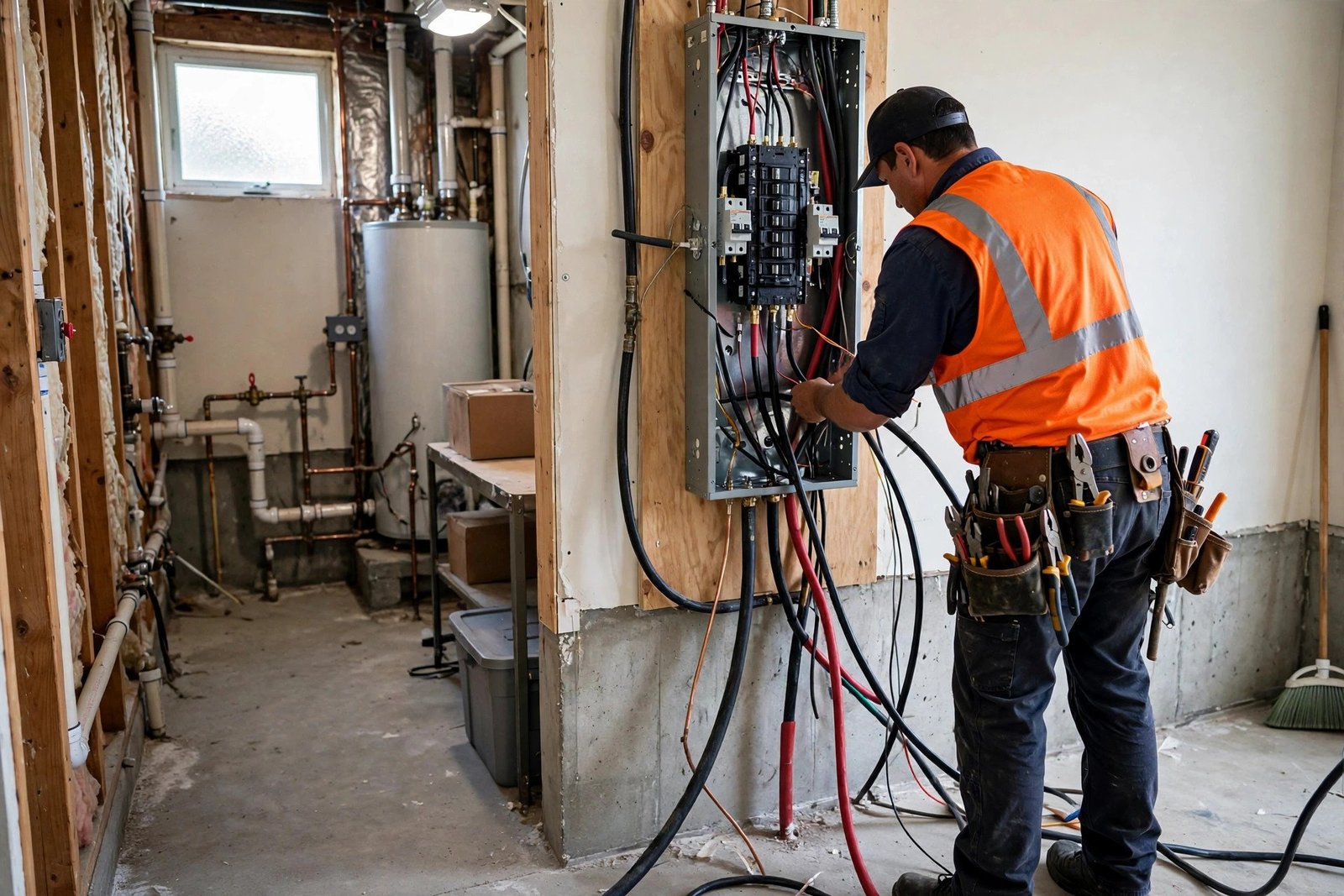

Full service upgrade (100 to 200 amps). The panel is only part of it. The service entrance is rebuilt: larger service conductors, a new meter base, possibly a new mast, grounding upgrades, and BC Hydro disconnecting and reconnecting your service. This is the job that actually gives your home more capacity.
| Job | What changes | 2026 BC planning range |
|---|---|---|
| Panel swap, same amperage (e.g. 100A → 100A) | Panel and breakers only | $2,500–$4,000 |
| Full service upgrade, 100A → 200A, overhead service | Panel, meter base, mast, service conductors, grounding | $4,000–$8,000 (most homes) |
| Full service upgrade, complex or underground service | Above, plus trenching, long conductor runs, relocation | $10,000–$16,000+ |
| Sub-panel addition (garage, shop, suite) | Secondary panel fed from existing service | $1,200–$2,200 |
Most Fraser Valley homes with overhead service land in the $4,000–$8,000 band for a complete 100-to-200-amp upgrade. Vancouver and underground-service homes run higher.
2. Why Quotes Vary From $2,000 to $16,000
Once you know the two scopes, the spread stops looking like gouging and starts looking like different jobs:
- Scope mismatch. The $2,000–$3,000 quote is usually a panel swap (or a low-scope price missing items below). The $12,000+ quote usually includes underground service work, a panel relocation, or major repairs found along the way. Compare scopes, not totals.
- BC Hydro’s part. A service upgrade needs BC Hydro to disconnect and reconnect your power, and their crew handles the wire from the pole. Utility fees apply, scheduling takes coordination, and homes needing new underground service wire pay substantially more.
- AFCI breakers. Current BC Electrical Code requirements call for arc-fault (AFCI) protection on most living-area circuits. A standard breaker costs about $15; an AFCI breaker runs $80–$120. Across 20-plus circuits, breakers alone can add roughly $1,500 compared to an older panel’s hardware.
- Grounding and bonding. Older Abbotsford and Mission homes often have grounding that no longer meets code. Bringing it up to standard is mandatory when the panel is replaced, and it is real labour.
- Short wires and relocations. Existing branch wires sometimes cannot reach a larger new panel — junction boxes and extensions add time. And if your panel sits in a bathroom or clothes closet (locations code no longer allows), it has to move, which can add thousands.
- Aluminium branch wiring. Homes wired in the late 1960s and 1970s need special connectors where aluminium meets modern breakers — a small per-circuit cost that adds up across a panel.
3. Permits: Technical Safety BC Rules
In BC, a panel replacement or service upgrade requires an electrical installation permit — issued by Technical Safety BC, or by your municipality where the city runs its own electrical inspection department (a few BC cities do). There is no legal “skip the permit” version of this job, and your home insurance provider agrees.
The permit must be taken out by a licensed electrical contractor, with a certified Field Safety Representative (FSR) named on it, and the finished work is inspected. Homeowner electrical permits exist in BC, but they are narrow: they cover an owner-occupier doing work in their own fully detached home, and they exclude work involving rental suites and attached or strata homes. Service-entrance work is also the most dangerous work in a house — the conductors feeding your meter stay live even with the main breaker off, because only the utility can disconnect them. This is contractor work, full stop.
Keep the passed inspection record. When you sell, buyers’ inspectors ask about panel work, and an unpermitted upgrade becomes a price negotiation you will lose.
4. The Usual Triggers: Why Homeowners Upgrade
A load calculation decides whether you truly need 200 amps, but these are the projects that most often push a 100-amp Fraser Valley home over the line:
- A legal basement suite. A suite adds a second kitchen, laundry, and heating load. Suite electrical also has its own rules — see our guide to legal basement suite requirements in Abbotsford. Suite projects routinely trigger a service upgrade.
- An EV charger. A Level 2 charger draws 30–50 amps on its own. Some homes can manage with a load-management device instead of a full upgrade — ask your electrician to price both.
- A heat pump. Switching from gas or baseboards to a heat pump with backup heat strips is a heavy new load, and the most common reason newer quotes include panel work. The energy-efficient home upgrades guide shows where the panel fits in a full retrofit.
- Hot tubs, shops, and additions. A hot tub (40–60 amps), a workshop, or a home addition each eat a serious share of a 100-amp service.
One rebate worth knowing: the CleanBC Home Renovation Rebate Program has included a rebate (recently $500) toward an electrical service upgrade done to support an eligible heat pump installation. Terms change — check betterhomesbc.ca before counting on it.
5. How the Job Actually Runs
A typical 200-amp upgrade takes one long day of on-site work, plus utility coordination around it: permit first, then BC Hydro disconnects the morning of the job, the contractor rebuilds the service and panel, the inspector reviews the work, and BC Hydro reconnects. Expect most of one day without power. Total elapsed time from quote to finished inspection is usually 2–6 weeks, driven mostly by permit and utility scheduling — another reason to start before the heat pump or suite project is mid-flight.
Frequently Asked Questions
How much does it cost to upgrade from 100 to 200 amps in BC?
Most BC homes pay $4,000–$8,000 for a complete 100-to-200-amp service upgrade in 2026, including the new panel, meter base, service conductors, permit, and utility coordination. Straightforward overhead-service homes sit at the low end; underground service, relocations, or problem wiring can push the job to $10,000–$16,000 or more.
What does a panel swap cost if I keep 100 amps?
About $2,500–$4,000. A same-size panel replacement gets you modern breakers, AFCI protection where code requires it, and spare circuit spaces — but no extra capacity. It solves a failing or full panel, not an overloaded service.
Do I need a permit for a panel upgrade in BC?
Yes, always. Panel and service work requires an electrical installation permit under BC’s Electrical Safety Regulation, taken out by a licensed electrical contractor (Technical Safety BC, or your municipality where it issues its own electrical permits). The work is inspected, and unpermitted panel work can surface as an insurance and resale problem.
Do I really need 200 amps for an EV charger or heat pump?
Not always — a load calculation decides. Adding one large load to a 100-amp service sometimes works, especially with a load-management device for EV charging. Two or three large loads together (charger plus heat pump plus suite) almost always mean 200 amps. A good electrician shows you the calculation rather than selling the upgrade on sight.
How long does a 200-amp upgrade take?
The hands-on work is usually one day, with the home’s power off for most of it. From signed quote to passed inspection typically runs 2–6 weeks, because permit processing and BC Hydro’s disconnect/reconnect schedule set the pace.
Is there a rebate for panel upgrades in BC?
Sometimes. CleanBC’s Home Renovation Rebate Program has offered a $500 rebate for an electrical service upgrade tied to an eligible heat pump installation. It is not a general panel rebate — confirm the current terms at betterhomesbc.ca before assuming your project qualifies.
Get the Scope in Writing
The only reliable way to compare panel quotes is a written scope: panel only or full service? Meter base and mast included? BC Hydro fees included? AFCI breakers throughout? Grounding brought to code? Two quotes with the same scope rarely differ by more than a few hundred dollars — and when one is half the price of the others, the missing lines are the story.
All costs in this article are 2026 BC planning ranges, not quotes. Electrical work in BC requires a permit and a licensed contractor — confirm your project’s requirements with Technical Safety BC or your municipal inspection department.
